Syntex Unidur Type 3
- Inside: Very smooth for minimum friction loss
- Outside: Longitudinal ribs for excellent abrasion resistance
- High-quality Nitrile/PVC compound is forced through the jacket in the extrusion process
- Jacket of 100 % high tenacity synthetic polyester yarn, circular woven, embedded in a rubber compound provides optimum protection of the jacket
- Available in Red or Blue
Feature
- High abrasion resistance and durability by longitudinal ribs
- Very light and flexible hose quality
- Minimum maintenance
- Extremely resistant to aging and ozone and UV
- Excellent abrasion resistance
- Temperature range from –40°C up to +100°C
- Minimum friction loss because of very smooth inner lining
- Suitable for sea water, hot water, many chemicals
Approvals/Certificates
- DIN 14811:2008-01+A2:2014-08
- BS 6391: 2009 Type 3
- Germanischer Lloyd
- Lloyds Register of Shipping
| Diameter | Working Pressure | Bursting Pressure | Weight | Approvals | Part No |
|---|---|---|---|---|---|
| 38MM / 1.5" | 20BAR | 60BAR | 300G | GL, LR, DIN, KM | HO-T3-UNI-15 |
| 45MM / 1.75" | 20BAR | 60BAR | 355G | GL, LR, DIN | HO-T3-UNI-17 |
| 52MM / 2.0" | 20BAR | 60BAR | 385G | GL, LR, DIN | HO-T3-UNI-20 |
| 65MM / 2.5" | 20BAR | 60BAR | 500G | GL, LR, DIN, KM | HO-T3-UNI-25 |
| 70MM / 2.75" | 20BAR | 60BAR | 595G | GL | HO-T3-UNI-27 |
| 75MM / 3.0" | 20BAR | 60BAR | 680G | GL, LR, DIN | HO-T3-UNI-30 |
| 102MM / 4.0" | 20BAR | 40BAR | 995G | GL | HO-T3-UNI-40 |
| 150MM / 6.0" | 20BAR | 40BAR | 166G | GL,DIN | HO-T3-UNI-60 |

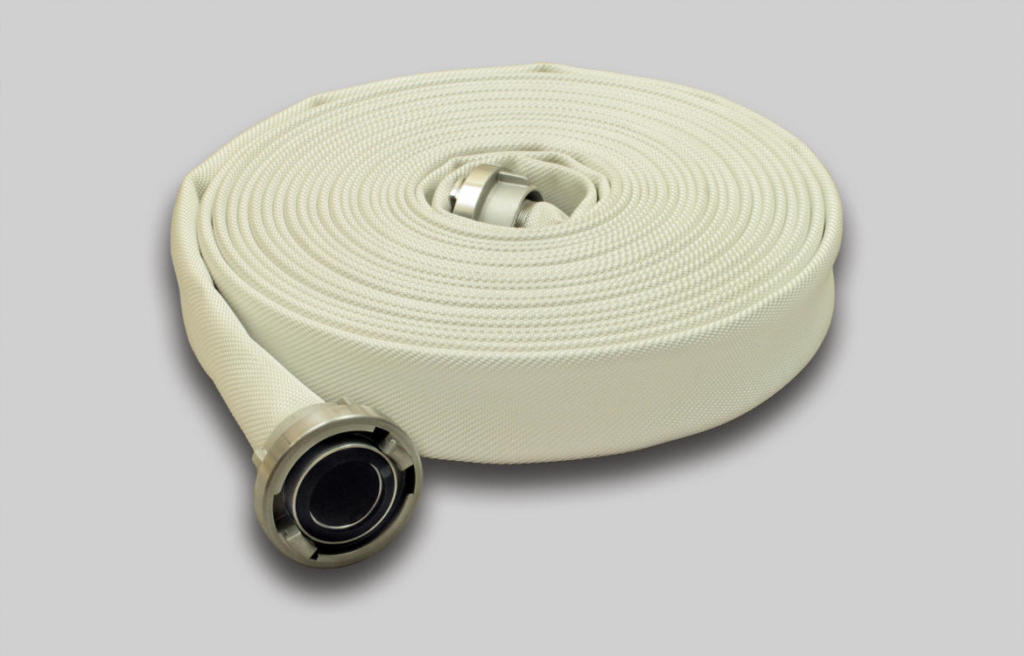

Syntex 500 Type 1
- Inside: High-quality, very light synthetic rubber on the basis of EPDM
- Outside: Jacket of 100% high tenacity synthetic polyester yarn (colour: white plain), circular-woven twill weave, warp and weft threads multiple twisted
- Available in White
Feature
- Very light and flexible hose quality
- Minimum maintenance
- Extremely resistant to aging and ozone and UV
- Excellent abrasion resistance
- Minimum friction loss because of very smooth inner lining
- Suitable for sea water, hot water, many chemicals
Approvals/Certificates
- DIN 14811:2008-01+A2:2014-08
- BS 6391:2009 Type 1
| Diameter | Working Pressure | Bursting Pressure | Weight | Approvals | Part No |
|---|---|---|---|---|---|
| 38MM / 1.5" | 20BAR | 60BAR | 200G | GL, DIN, KM | HO-T1-SSO-15 |
| 45MM / 1.75" | 20BAR | 60BAR | 240G | GL, LR, DIN | HO-T1-SSO-17 |
| 52MM / 2.0" | 20BAR | 60BAR | 275G | GL, LR, DIN | HO-T1-SSO-20 |
| 65MM / 2.5" | 20BAR | 60BAR | 360G | GL, DIN, KM | HO-T1-SSO-25 |
| 70MM / 2.75" | 20BAR | 60BAR | 430G | GL, DIN, KM | HO-T1-SSO-27 |
| 75MM / 3.0" | 20BAR | 60BAR | 480G | GL, DIN, KM | HO-T1-SSO-30 |
